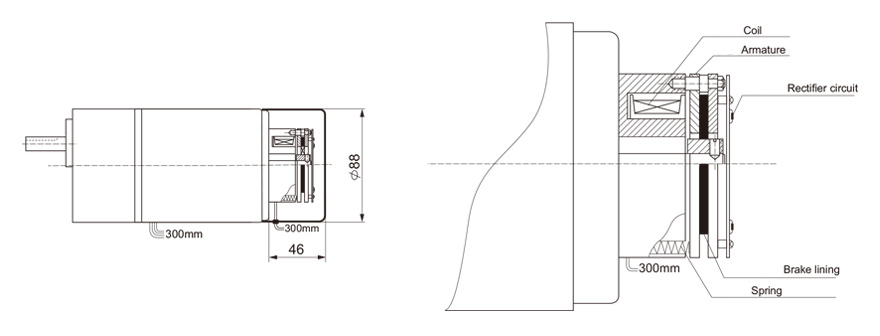

STRUCTRE ELECTROMAGNETIC BRAKE DIAGRAM
For the related data after mounting the reduction gear,please,consult the YYCJ-type reducttion gear motor

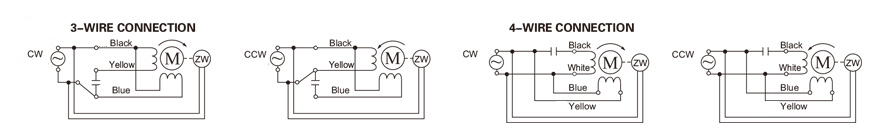

意昂4WIRING DIAGRAM

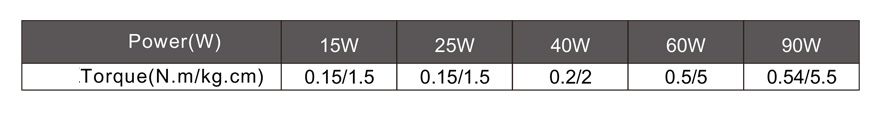

BRAKING TORQUE
意昂4FEATURES OF USE
1.Simple structure,good performance.
2.Suitable motors are those with a power ranging from 15W to 120W.
3.Braked within 0.2 sec.after disconnection of the motor.
意昂44.Having enough braking torque to effect an emergency stop faster.
意昂45.May exercise an adequate adjustment to the sensitiveness of the
brake at user's requirement.
